Choosing the right surface finish for a mission-critical component is a decision that directly impacts product lifespan, performance, and cost. For a Supplier Quality Engineer, the wrong choice can lead to premature field failures and costly quality issues. For a Purchasing Director, it can mean budget overruns and limited supplier options. You’re constantly balancing the need for robust corrosion resistance, specific aesthetic qualities, and durability, all while adhering to tight project schedules and IATF 16949 standards.
As an engineer specializing in aluminum die casting for over two decades, I’ve worked closely with automotive clients who face this exact dilemma. A motor controller housing needs impeccable corrosion protection, while a user-facing trim piece requires a flawless cosmetic finish. Often, the choice boils down to two popular electrochemical processes: anodizing and electroplating.
While they may seem similar, their fundamental differences in mechanism, application, and performance are critical to understand. This guide will break down the three key distinctions to help you make a more informed decision for your next project.
1. Coating Mechanism: Oxide Formation vs. Metal Deposition
The most fundamental difference lies in how the protective layer is created. One process converts the existing surface, while the other adds a new one.
Anodizing: An Integral, Grown Layer
Anodizing is an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts. In simple terms, the aluminum component is submerged in an acid electrolyte bath and an electric current is passed through it.
Instead of depositing a new material, this process converts the surface aluminum into aluminum oxide. This layer is fully integrated with the base material, as it is literally "grown" from it. Because it’s an integral part of the substrate, the anodized layer won’t chip, peel, or flake off. Its porous structure also allows it to be easily dyed, offering a wide range of color options.
Electroplating: An Additive, Deposited Layer
Electroplating, also known as electrodeposition, involves using an electric current to reduce dissolved metal cations so that they form a thin, coherent metal coating on an electrode. The component to be coated acts as the cathode.
This is an additive process where a layer of a different metal—such as chrome, nickel, zinc, or gold—is deposited onto the surface of the substrate. This deposited layer provides the desired properties, whether it’s the corrosion resistance of zinc, the hardness of chrome, or the conductivity of gold.
| Feature | Anodizing | Electroplating |
|---|---|---|
| Process Type | Conversion (integrates with the base metal) | Additive (deposits a new layer on top of the base metal) |
| Coating Material | Aluminum oxide (or oxide of the base metal) | A different metal (e.g., chrome, nickel, zinc, copper) |
| Bonding | Molecularly bonded, integral to the part | Mechanically/metallurgically bonded, but is a distinct layer |
| Dimensional Change | Minimal; part of the growth is into the substrate | Adds to the part’s dimensions by the thickness of the layer |
2. Material Compatibility and Application Scope
The choice between these two processes is often predetermined by the base material of your component.
Anodizing: A Specialist for Non-Ferrous Metals
Anodizing is primarily effective on a select group of non-ferrous metals. Aluminum is by far the most common candidate, making it the go-to surface treatment in the die casting industry. Other metals that can be anodized include magnesium, titanium, and zinc. This specialization is a key reason why you see anodizing used extensively for:

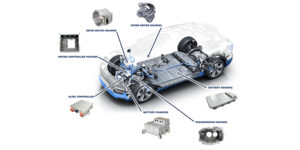

- Automotive parts like EV motor housings and controller enclosures
- Architectural fittings and frames
- High-end electronics casings (e.g., smartphones and laptops)
My Expert Insight: For the aluminum die-cast housings we produce for new energy vehicles, anodizing is frequently specified. The process not only provides excellent corrosion resistance but also enhances surface hardness and wear resistance, which is critical for components exposed to harsh environments. Furthermore, hard anodizing (Type III) offers superior thermal emissivity, helping to dissipate heat from the sensitive electronics inside.
Electroplating: A Versatile Multi-Material Solution
Electroplating is exceptionally versatile and can be applied to a vast range of materials, including:
- Most metals: steel, copper, zinc, brass, and aluminum.
- Plastics: With proper surface preparation (e.g., applying a conductive layer), even plastics can be electroplated for a metallic finish (e.g., chrome-plated plastic trim).
This versatility makes electroplating a dominant choice in industries where components are made from diverse materials. Common applications include chrome-plated automotive bumpers and wheels, zinc-plated fasteners for corrosion resistance, and gold-plated electrical connectors for conductivity.
3. Corrosion Resistance, Appearance, and Durability
Finally, the functional and aesthetic outcomes of each process cater to different engineering requirements.
Anodizing: Durability and Color That Lasts
- Corrosion Resistance: The aluminum oxide layer created by anodizing is extremely hard and highly resistant to corrosion and abrasion. Since the layer is integral, there’s no risk of it chipping or peeling, which would expose the underlying aluminum.
- Appearance: Anodizing typically produces a matte to semi-gloss metallic sheen. Because the coating is porous before sealing, it can be dyed in a wide array of colors that are exceptionally fade-resistant, as the color is absorbed into the layer itself, not just sitting on the surface.
- Durability: Hard anodizing produces a surface that can be harder than tool steel, offering exceptional wear resistance in demanding applications.
Electroplating: Aesthetics and Functional Versatility
- Corrosion Resistance: The level of protection depends entirely on the metal being deposited. Zinc and cadmium plating offer excellent sacrificial protection for steel, while chrome provides a robust barrier. However, if this barrier is scratched or breached, the underlying substrate can be exposed and begin to corrode.
- Appearance: Electroplating is unmatched for achieving bright, reflective, and highly decorative finishes, most famously "chrome." It can also be used to create satin, brushed, or dark finishes depending on the metal and process used.
- Durability & Function: Electroplating offers a wide spectrum of functional benefits beyond appearance. It can enhance electrical conductivity (gold/silver plating), improve solderability (tin plating), and build up material on worn parts for repair.
Final Recommendation
Your choice depends on your primary goal and base material:
- Choose Anodizing when working with aluminum or titanium and your priorities are durability, superior abrasion resistance, integrated corrosion protection, and fade-resistant color. It is the ideal choice for high-performance aluminum die-cast components.
- Choose Electroplating for a wider range of materials (especially steel and plastics) when the primary requirement is a specific metallic appearance (like bright chrome), enhanced conductivity, or sacrificial corrosion protection.
Understanding these core differences will empower you to specify the right finish, ensure product quality, and build a more reliable and efficient supply chain.
